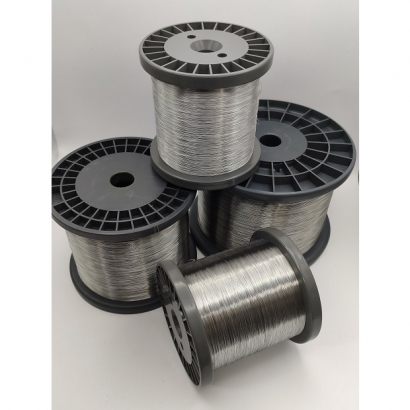

The selection of electric heating materials depends on inherent resistance to the current flow to produce heat.
Copper wire doesn’t produce sufficiently heat when conducts electricity. Hence for an alloy as wire, rod,
strip or ribbon to treat as an electric heating element it should oppose the flow ofelectricity.

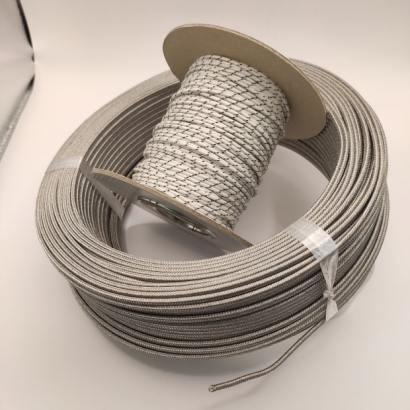

High temperature resistant cables are used in production areas with extremely high temperatures and



are used in the steel industry, plastics processing, heating and so on. We can supply different temperature range


of heat-resistant cables can be used in temperature range of 180°C / 400°C / 500°C / 750°C.




















Specification
size range : 0.34mm2 ~8.0mm2
Voltage:  300V or 600V
conductor : pure nickel or other materials need further discussion

We could help you find the cable solution to be suitable for your application.

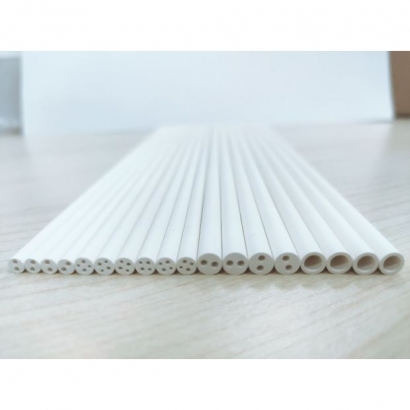

High pure quality magnesia MgO insulator for cartridge heater and coil heater

Material :high quality Magnesium oxide
Color: White
Working temperature : 2200 degree
Application : the thermocouples &sensors, hot runner heater, cartridge heater
,tubular heater.
Size: We provide special specifications & customized size.
Available sizes : 1.4mm ~ 18mm (OD) X 2holes X 200mmL










ITEM
Application


Alloy 600
Good oxidation resistance at high temperature and corrosion resistance to various acid and alkali environments.


Alloy 601
The addition of aluminum gives it good oxidation and corrosion resistance.


Alloy 800
High strength and good oxidation resistance and carburization resistance in high temperature environment.


Alloy 800H
It has high creep rupture strength in high temperature environment.


Alloy 825
Nickel-iron-chromium alloy with added molybdenum, copper and titanium for excellent corrosion resistance.


Alloy 840
Ideal material for the manufacture of electric heating pipes, automotive emission control systems and other high temperature products.


Alloy 276
Tungsten is added for use in harsh corrosive environments.















規格
化學成分 (%)
主要用途


　
Ni
Cr
C
Mn
Si
Fe
Cu
Mo


　
　
　
　
　
　
　
　
　


SUS 304
8~15
18~20
0.08
2
1
balance
　
　
工業中的使用最廣泛的不銹鋼，具有良好的耐腐蝕性。


SUS 304L
9~13
18~20
0.03
2
1
balance
　
　


SUS 316
10~14
16~18
0.08
2
1
balance
　
2~3
常溫下具有優良的耐腐蝕性，可承受一些酸、氯和氯化物。


SUS 316L
12~15
16~18
0.03
2
1
balance
　
2~3


SUS 310S
19~22
24~26
0.08
2
1.5
balance
　
　
其高鉻和中等鎳含量，使其具有抗氧化、抗硫化和其他形式的熱腐蝕的主要特性。最高乾燥空氣使用溫度為 1100oC。


　
　
　
　
　
　
　
　
　
　


　
　
　
　
　
　
　
　
　
　


　
　
　
　
　
　
　
　
　
　

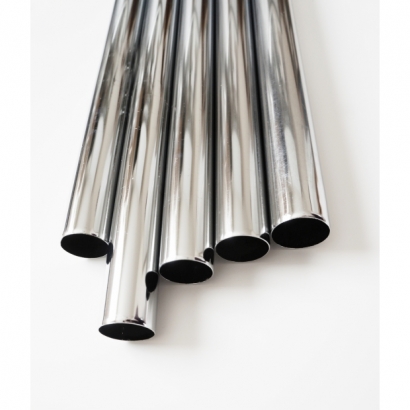

Seamless stainless steel pipe
Application:
Electric heating tube, petrochemical, flue pipe, machinery industry, food industry, chemical industry,
electronic optoelectronic semiconductor industry, biotechnology medical industry, mechanical parts industry...etc.

Material:
ASTM TP304 / TP304L
ASTM TP 316/ TP 316L
ASTM TP 310S
ASTM TP321

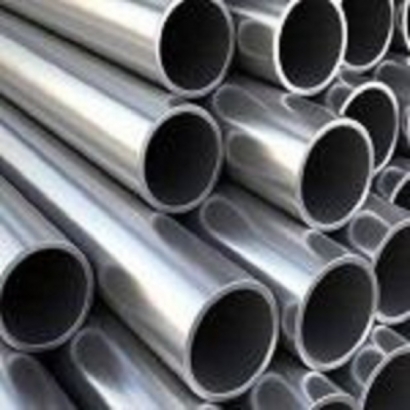

Welded stainless steel pipe
Generally referred to as welded pipe, welded stainless steel pipe is a steel pipe made by crimping and welding stainless steel strips.
The strength of welded stainless steel pipe is lower than that of seamless stainless steel pipe,
but with the rapid development of production and the advancement of welding and inspection technology,
The improved quality of the weld seam makes it possible to replace seamless stainless steel pipes in many fields.

Application:
Welded pipes are widely used in water supply engineering, petrochemical industry, chemical industry, electric power industry and so on.



Excellent Thermal Material
Excellent Electrical Insulation

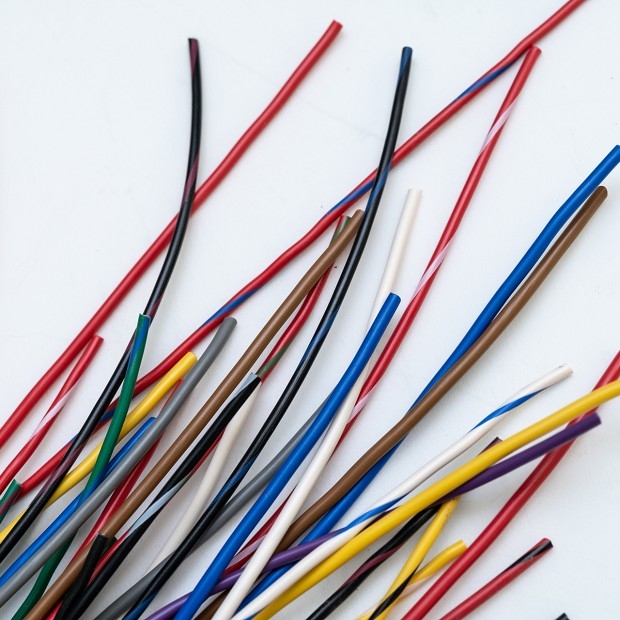

Typically, thermocouple cable construction consists of a pair of insulated wires, one positive and one negative, parallel to each other
with a protective sheath. Various insulation materials can be extruded, coiled, wound, served and braided on thermocouple wire.

We offer all types of thermocouple wire including:

K type, E type, J type, T type, N type, B type, R type, S type

advantage of Extension cable
● Use the same material as the conductor and the thermocouple element wire, which can be used in a wider temperature range.
● The linearity of the difference curve is better.

disadvantage of Extension cable
● Prices are uncompetitive

advantage of Compensation cable
● Select the appropriate wire material to get better precision with the extension wire.
● The price is more advantageous.

Disadvantage of Compensation cable
● Use conductors and thermocouple wires made of different materials, and when used in a wide temperature range, the error value is difficult to control.
● The temperature range used is limited.

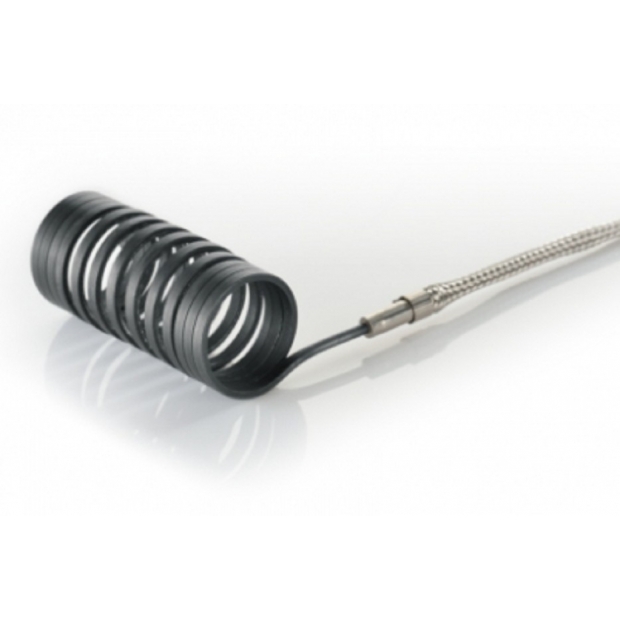

Electric heating tubes are widely used. After bending, they are fixed on the machine or inserted into the mold. The heat energy they exert is accurate and efficient. All kinds of heating or heat preservation needs from households to industries can be met by using electric heating tubes.

In industry, such as chemical reaction furnace, heating and drying of chemical raw materials, dyeing and finishing of textile industry, plastic injection molding machine, hot pressing molding machine, scientific equipment, semiconductor industry, aviation equipment, mold heating, chemical skin, plastic skin foaming and gluing , metal die-casting, food processing, central kitchen equipment, chemical potion, electroplating solution, and various oil heating.

We have a professional team that can design custom electric heating elements and electric heating related mechanical equipment for you.
  Please get in touch.

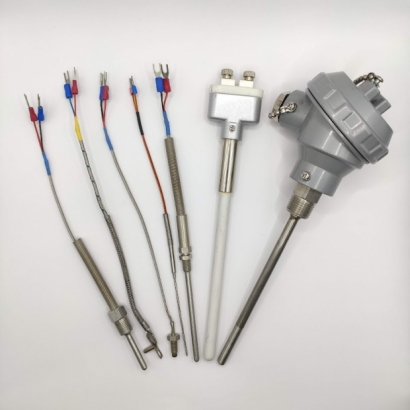

Thermocouple is a sensor used to measure temperature that couples two dissimilar metals at the sensing end of the connection.
Thermocouple wires are used to connect from the sensing point to the cold junction compensation point of the measurement signal
using a thermocouple. Thermocouple wire is commonly used in applications such as scientific, industrial, instrumentation, and heating equipment.

We have a professional team that can design custom products for you.  Please get in touch.
