Thermocouple wire

Thermocouple Extension wire & Insulated thermocouple wire

Thermocouple Extension wire & Insulated thermocouple wire

  • thermocouple wire.jpg

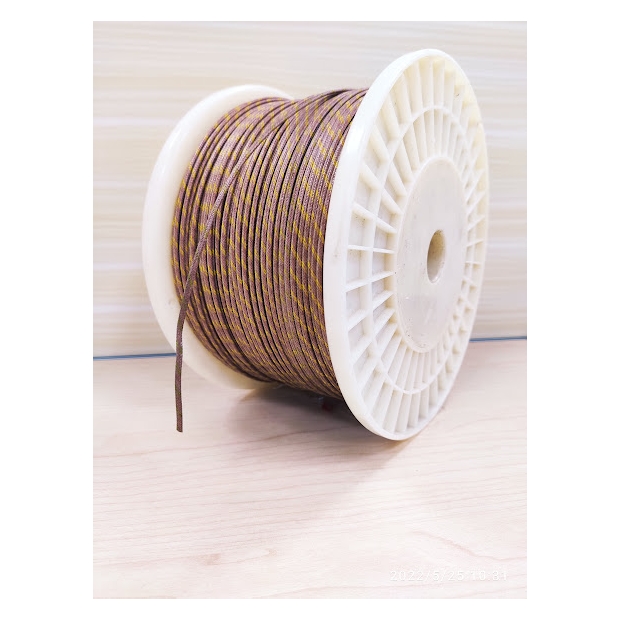

  • Thermocouple wire
DETAIL

Typically, thermocouple cable construction consists of a pair of insulated wires, one positive and one negative, parallel to each other
with a protective sheath. Various insulation materials can be extruded, coiled, wound, served and braided on thermocouple wire.


We offer all types of thermocouple wire including:

K type, E type, J type, T type, N type, B type, R type, S type

advantage of Extension cable
Use the same material as the conductor and the thermocouple element wire, which can be used in a wider temperature range.
The linearity of the difference curve is better.

disadvantage of Extension cable
Prices are uncompetitive

advantage of Compensation cable
Select the appropriate wire material to get better precision with the extension wire.
The price is more advantageous.

Disadvantage of Compensation cable
Use conductors and thermocouple wires made of different materials, and when used in a wide temperature range, the error value is difficult to control.
The temperature range used is limited.
